hash index

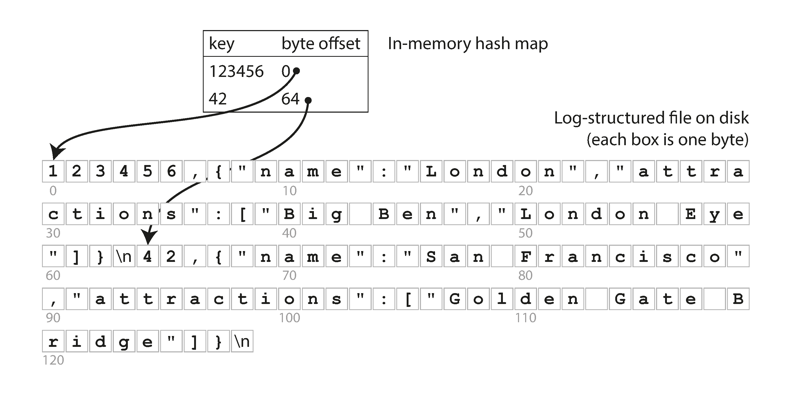

In-memory, we can store a key-value pairs of keys with addresses/data.

hash-index.excalidraw

⚠ Switch to EXCALIDRAW VIEW in the MORE OPTIONS menu of this document. ⚠

Text Elements

“donald”

“shaq”

“jordan”

hash function

3

2

1

donald

shaq

jordan

bird

0xabc

0x209

0xfff

this data isn’t necessarily stored near each other on disk.

Link to original

This allows us to achieve amortized $O(1)$ time with lookups in this hash table, pointing us to the address where the data we want to find is on disk.

A word on hashing

Because of hashing, there’s no guarantee that similar keys are close to each other on disk!

pros

• Reads to the hash map are very fast, as they are in-memory and don’t require disk I/O.

cons

• The hash map must be maintained in-memory, because implementing a hash map on disk requires lots of random disk I/O.
• All of our keys need to fit into memory.
• RAM is not durable.
• Range queries are not possible in under $O(n)$ time, because the hash map doesn’t implicitly store information about how keys are related to each other (unlike b-trees).
